Pressure Gauges

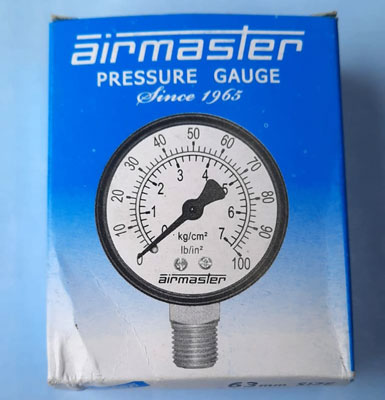

COMMERCIAL GAUGE :

Case : Pressed Steel Case, Stove enameled Black.
Dial size : 50mm, 63mm, 100mm and150mm
Range : -760 mm Hg to upto 600 Kg/cm2 Pressure, Vacuum and Compound Ammonia
Application : Range -30 to 150 PSI & 300 PSI
Connection : ¼”, 3/8” or 1/2” BSP/NPT
Mounting : Direct, Surface & Panel mounting
Accuracy : +/-2% FSD





WEATHER PROOF GAUGE :

Aluminium Die-cast weatherproof,heavy/S.S.Case
ABS inner screwed Bezel Brass / S. S. Internals
Dial Sizes :100, 150, 200 & 250mm
Accuracy : +1% Or 0.5%
Range : -1 to 1400kg/cm2 , "0" adjustable pointer B. O. D.

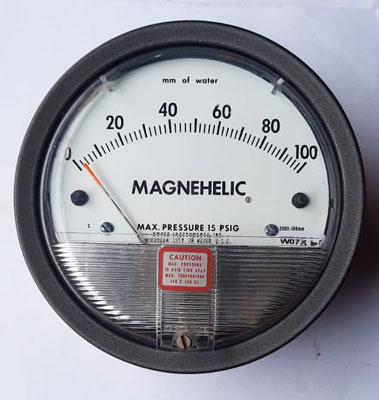

DIAPHRAGM GAUGE (LOW PRESSURE) :

65mm, 100mm & 150mm Dial
Aluminium die-cast casing. Brass / S. S. Internals
S. S. / P.T.F.E. Coated contact Parts
Screwed / flanged connection
Range : -100 MMWC, Vacuum: to 10000 MMWC

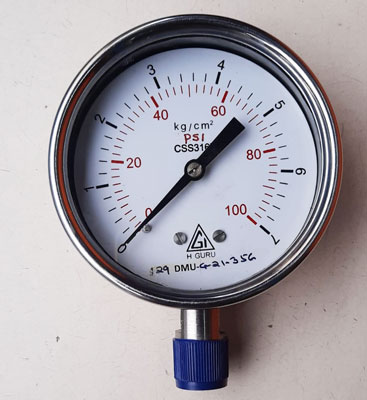

SEALED UNIT GAUGE :

Dial size : 65 mm, 100 mm & 150 mm
Aluminium die-cast / S. S. casing. Brass / S. S. Internals
S. S. /P.T.F.E. Coated contact parts
Screwed / flanged connection.
Accuracy : +1% Range : -1 to 600 kg/cm2









DIFFERENTIAL GAUGE (6" Dial) :

Built-in over range Equalising Valve
External "O" adjustment
Static Pressure upto 100 kg/cm2
Aluminium die-cast casing.
Accuracy : +1.5 F.S.D.
Range : 400 MMWC to 24 kg/cm2.









DRAUGHT GAUGE (6" & 8") :

Sheet Metal casing. Brass / S. S. Internals
Accuracy : +1.5%
Range : -25 MMWC to 10000 MMWC









CAPSULE TYPE GAUGE (IN-BUILT) :

Dial size : 65mm, 100mm, 150mm & 250mm
Aluminium die-cast / S. S. casing. Brass / S. S. Internals
Accuracy : +1% or 0.5%
Range : 100 to 10000 MMWC

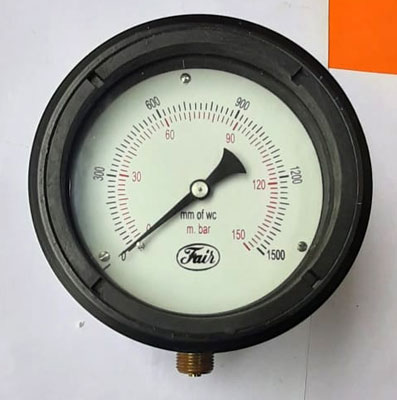

CAPSULE GAUGE (OUTSIDE) :

Dial Size :100 & 150 mm
Connection: 3/8" BSP (M) (Std.)
Case: Cast Aluminium/Cast Iron,Weatherproof
Stove enamelled black with screwed bezel
Range :
0 to 100, 250, 400, 600, 1000, 1600, 2000, 2500, 4000, 6000 mm wc.

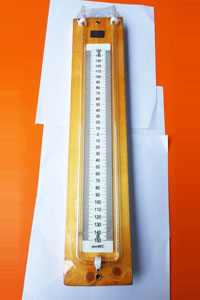

MANOMETER :

Sheet Metal casing. Brass / S. S. Internals
Accuracy : +1.5%
Range : -25 MMWC to 10000 MMWC









AQUAMET WATERMETER :
